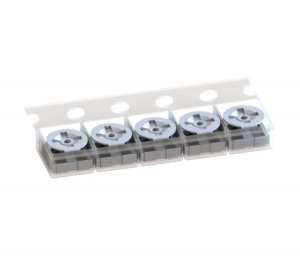

Product Name : C3305
Product Description

Features:
3 mm size
Single-Turn / Cermet / Open Frame
Designed for reflow soldering
Rotor design compatible with automatic adjustment equipment
2,000 pcs per reel
Application:
Audio equipment and television, such as television receivers, satellite receivers
Power supply unit
Instruments, industrial equipment

Product Introduction
1Total resistance/ Tolerance100Ω~2.2MΩ±25% (More than 1 MΩ±30%)
2 Taper type B taper
3 Rotational angle 360° (without stopper)
4 Rotational life 20±2 cycles
5 MOQ 2000pcs
How to order :
C3305 - B 10K
Model No Taper Resistance value
